QC Series with Poppet

General Features

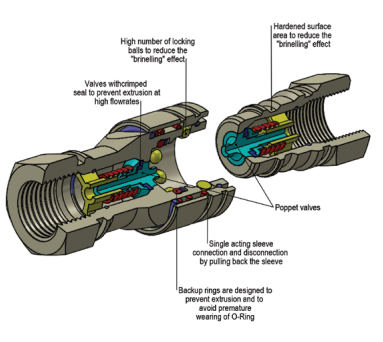

Technical Drawing
View on Catalog
Working Temperature -20 C / +100 C
Interchange ISO 7241 -1 A
Operating Pressure Up to 350 Bar
Available Threads BSP - NPT
Available Sizes From 1/4" to 2"
Sealing Description Nitrile NBR
Locking Mechanism Locking Ball System
Flow Rate Up to 753 l / min
Material High Strenght Carbon Steel
Main Applications
Agriculture
Chemical Industry
Concrete Vehicles
Earth Moving
Hydraulic Industry
Hydraulic Equipment
Oil & Gas
Vehicles
