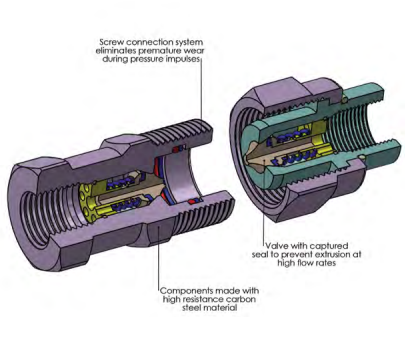

QC-VYB Series High Pressure Screw

General Features
Working Temperature -20 C / +100 C
Interchange ISO 16028
Operating Pressure Up to 500 Bar
Available Threads BSP - NPT
Available Sizes From 1/4" to 1"
Sealing Description Nitrile NBR
Locking Mechanism Screw to Connect
Flow Rate Up to 214 l / min
Material Carbon Steel
Main Applications
Chemical Industry
Concrete Vehicles
Earth Moving
Hydraulic Industry
Hydraulic Equipment
Oil & Gas
