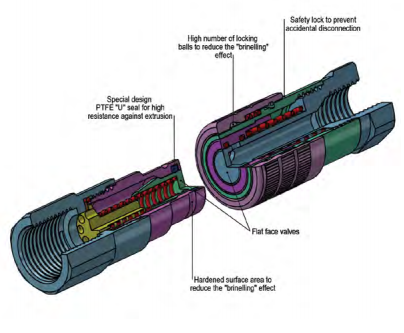

QC-F Series Flat face

General Features
Working Temperature -20 C / +100 C
Interchange ISO 16028
Operating Pressure Up to 380 Bar
Available Threads BSP - NPT
Available Sizes From 3/8" to 1" 1/4
Sealing Description Nitrile NBR
Locking Mechanism Locking Ball System +Safety Lock
Flow Rate Up to 308 l / min
Material High Strenght Carbon Steel
Main Applications
Agriculture
Chemical Industry
Concrete Vehicles
Earth Moving
Hydraulic Industry
Hydraulic Equipment
Oil & Gas
Vehicles
